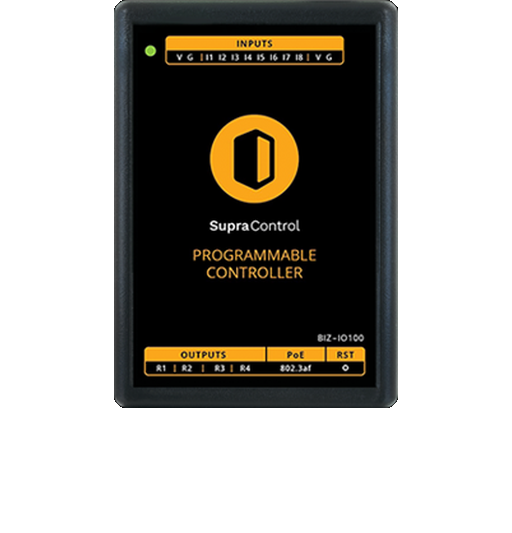

Supracontrol BIZ-PLC100e

Programmable Logic Controller

Supracontrol BIZ-PLC100e Programmable Controller is an IP-based controller designed to manage and control Digital Inputs and Relay Outputs. The Controller includes an integrated Web Management Console and Cloud Service. It comes with an active PoE power supply, 8 Digital Inputs and 4 Relay Outputs.

  • Indicators Power (green LED), Alarm (red LED)
  • Communication Ethernet 10/100Base-T networks compatible
  • Ports RJ45 Ethernet port, 8 Digital Inputs, 4 Relay Outputs
  • Digital Inputs 8 dry contact digital inputs, opto-isolated (12 VDC)
  • Relay Outputs 4 small signal latching relays 60 VA (0.25 A @ 230 V – 2 A @ 30 V)
  • Device operating conditions Temperature: -5 – 55 °C
    Relative humidity: 0 – 95 %RH (non-condensing)
  • Device storage conditions Temperature: -20 – 65 °C
    Relative humidity: 0 – 95 %RH (non-condensing)
  • Input voltage DC 48 V (PoE IEEE 802.3af)
  • Power consumption TBA
  • Dimensions Height: 105 mm
    Width: 75 mm
    Depth: 36 mm
  • Weight TBA

  • Built-in web server with Web Management Console for Controller management and configuration
  • Alarm notifications via email
  • Communication via secure HTTPS protocol (TLS 1.2)
  • Powered by Power over Ethernet (PoE IEEE 802.3af)
  • Integrated DHCP client
  • Firmware updates over IP network
  • Free API for easy 3P integration
  • Free Cloud Service platform with real-time monitoring and alarm logs view over the Internet
  • Free Supracontrol mobile application allows monitoring and control over the Internet (iOS and Android versions available at respective stores)
  • 4 signal Relay Outputs for 3P device control
  • 8 Digital Inputs (dry contact) for connection of contact-closure sensors such as door sensors, motion detect sensors, flood sensors or smoke sensors
